Servo Horn
We offer a variety of output shaft configurations to suit different servo applications and specifications.
Since each configuration requires a different servo horn, please be sure to use the servo horn that matches your specifications.
Servo Horn Types
| No. | Set Contents | Serration | Material | Quantity |
|---|---|---|---|---|
| 1 | BE0001 | S6L | Aluminum | 5 pcs |
| 2 | BE0002 | S6 | Aluminum | |
| 3 | BE0003 | S6 | Aluminum | |
| 4 | BE0004 | For AJ9DA only | Stainless |

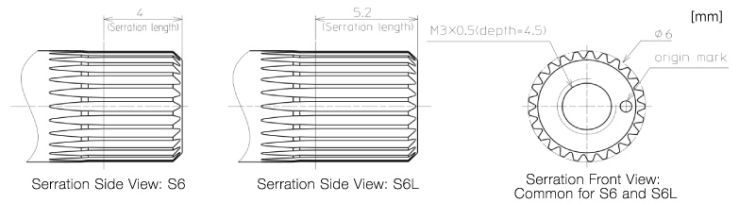

Specifications for Serration
S6 Specification
This specification features an output shaft with a nominal diameter of 6 mm(0.24inch) and 25 teeth.
It is compatible with servos and servo horns labeled “S6.”
This is the most commonly used specification for our servos.
S6L Specification
The cross-section is the same as the S6 specification, but the shaft is longer.
This specification is used for high-torque servos.
Output shafts and servo horns labeled “S6L” are compatible.
Other Specifications
We also offer servos with shapes other than those listed above, depending on the servo size, torque, and application.
Please refer to the spec sheets for each servo for details.
