Cables
Servo Connection Cable

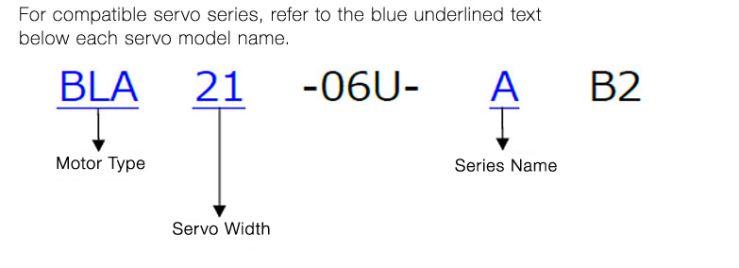

The type of cable you can use varies depending on the servo model. Each cable is designed to match the specifications listed in the compatibility chart below. Please read the manual for your servo carefully to confirm the model and specifications before use.
| No. | Compatible Servo | Connector | Set Contents | Length [mm] | Connector Type | Shield | Quantity |
|---|---|---|---|---|---|---|---|
| 1 | BLA21-A Series | M8 Connector | BE0010 | 400 | Straight | Yes | 1 pc |
| 2 | BE0011 | Angle | Yes | ||||
| 3 | BLA15-A Series | M5 Connector | BE0012 | Straight | No | ||
| 4 | BE0013 | Angle | No | ||||
| 5 | BE0014 | Straight | Yes | ||||
| 6 | BE0015 | Angle | Yes | ||||
| 7 | AJ9DA Series (Detachable) | JWPF Connector | BE0016 | Straight | Yes | ||
| 8 | AJ9DA Series (Fixed/Detachable) | BE0017 | 55 | No |
For BLA21-A Series
Communication cables designed for the BLA21-A series. Item (1) is a straight type, while (2) is an angled type.
(1) M8 Connector BE0010
(2) M8 Connector BE0011
For BLA15-A Series
These are communication cables for the BLA15-A Series.
(3) is a straight-type cable, and (4) is an angled-type cable.
(5) and (6) are the shielded versions of each type.
(3) M5 Connector BE0012
(4) M5 Connector BE0013
(5) M5 Connector BE0014
(6) M5 Connector BE0015
For AJ9DA Series (Detachable Type, Length 400 mm)
This cable is compatible with detachable-type models in the AJ9DA series.
It serves as a conversion cable between the main unit and a JWPF connector.
Compatible detachable models:
AJ9DA43
AJ9DA44
AJ9DA53
AJ9DA54
(7) JWPF Connector BE0016
For AJ9DA Series (Detachable / Fixed Type, Length 55 mm)
This cable is compatible with all AJ9DA series models, both detachable and fixed types. It functions as a conversion cable between a JWPF connector and lead wires.
(8) JWPF Connector BE0017
Operation Manual
*Applies to all cables listed above.
