Slim Design Display module

Thin Package

・Slim 13mm display with attached self supporting base.

・Display head tilts up to 40 degrees for improved view.

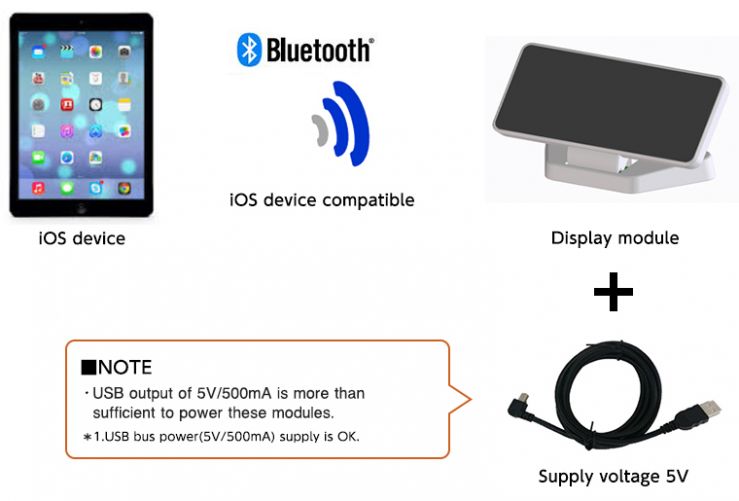

Bluetooth Connectable

Display and Case configuration Selection

・High contrast display using non-glare filter.

・Available in 4 type of display configurations - VFD or FSTN-LCD and ANK or Kanji Character set.

・Available in various types of Fonts.
ANK:USA,France,Germany,Japan,Korea etc. (1byte character)
Kanji:ANK+Japan (Shift JIS) ,China (Simplified/Traditional) ,Korea. (2byte character)

*ANK:Alpha-Numeric Kana

	FSTN-LCD	VFD
ANK※	AH148** Two by twenty 5×8 dot matrix characters	AH156** Two by twenty 5×8 dot matrix characters
KANJI	AH147** 160×40 dot matrix display	AH145** 160×36 dot matrix display

FSTN-LCD

VFD

ANK※

AH148**
Two by twenty 5×8 dot matrix characters

AH156**
Two by twenty 5×8 dot matrix characters

KANJI

AH147**
160×40 dot matrix display

AH145**
160×36 dot matrix display

*Available Case color selection
